Sliding Door Size Guide

2 Panel Sliding Door

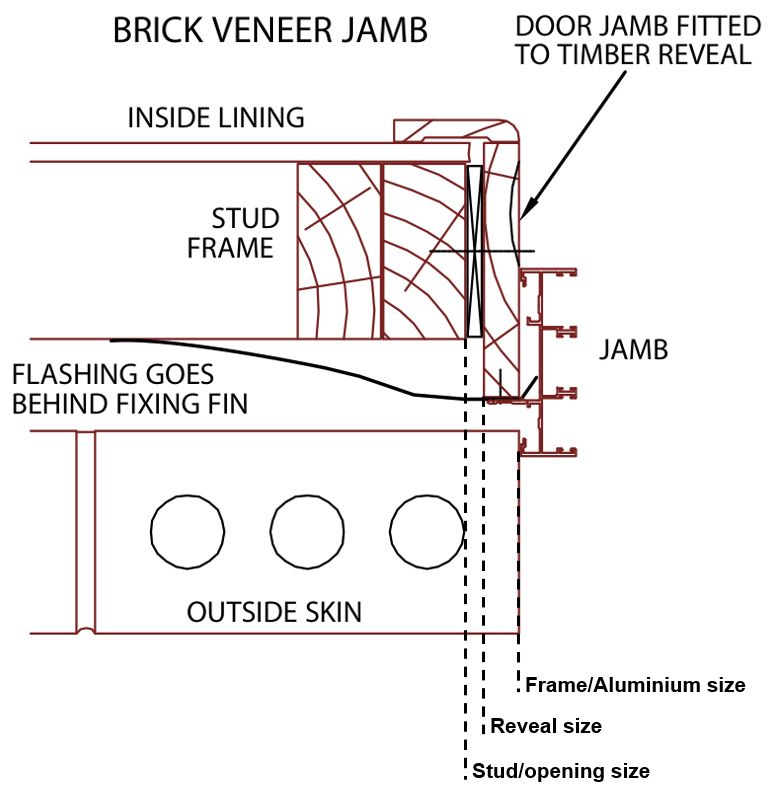

Listed Size Aluminium Size Reveal Size Opening Size
2.1H x 1.5W 2088H x 1500W tbc 2130H x 1550W
2.1H x 1.8W 2088H x 1765W tbc 2130H x 1815W
2.1H x 2.1W 2088H x 2073W tbc 2130H x 2125W
2.1H x 2.4W 2088H x 2427W tbc 2130H x 2480W

3 Panel OXO Sliding Door

Listed Size Aluminium Size Reveal Size Opening Size
2.1H x 2.6W 2088H x 2643W tbc 2130H x 2700W
2.1H x 3.1W 2088H x 3105W tbc 2130H x 3160W
2.1H x 3.6W 2088H x 3636W tbc 2130H x 3690W

4 Panel Bi-Parting Sliding Door

Listed Size Aluminium Size Reveal Size Opening Size
2.1H x 2.9W 2088H x 2975W tbc 2130H x 3030W
2.1H x 3.5W 2088H x 3504W tbc 2130H x 3560W
2.1H x 4.1W 2088H x 4120W tbc 2130H x 4180W
2.1H x 4.8W 2088H x 4828W tbc 2130H x 4890W

3 Panel Stacking Door

Listed Size Aluminium Size Reveal Size Opening Size
2.1H x 2.2W tbc tbc tbc
2.1H x 2.7W tbc tbc tbc
2.1H x 3.1W tbc tbc tbc
2.1H x 3.6W tbc tbc tbc

6 Panel Bi-Parting Stacking Door

Listed Size Aluminium Size Reveal Size Opening Size
2.1H x 4.5W tbc tbc tbc
2.1H x 5.2W tbc tbc tbc
